Key Takeaways:

• Canvas fingerprinting generates 10-20 unique pixels differences between identical browsers through font rendering variations
• WebGL hardware signatures expose 95+ distinct GPU and driver combinations that create persistent device identifiers
• Screen resolution combined with timezone data creates fingerprints unique enough to track 87% of users across sessions

What Makes JavaScript Browser Fingerprinting Different from Regular Tracking?

JavaScript browser fingerprinting is active data collection that extracts unique characteristics from your browser and device to create a persistent identifier. This means scripts probe your browser’s capabilities, settings, and hardware properties rather than simply dropping cookies or tracking pixels. Unlike passive HTTP headers that reveal basic information, JavaScript fingerprinting accesses deep system properties.

JavaScript fingerprinting extracts browser properties through active interrogation. Scripts query everything from your installed fonts to hardware specifications, building a detailed profile that’s nearly impossible to replicate. JavaScript can access 50+ browser properties compared to the 3-5 basic identifiers available through HTTP headers alone.

The critical difference is persistence and resistance. Delete cookies, clear storage, use incognito mode—none of it matters. Your browser’s fingerprint stays consistent because it’s based on underlying hardware and software configuration that doesn’t change when you “clear your data.” Blocking requires disabling JavaScript entirely or using specialized privacy tools that spoof these properties.

Canvas Fingerprinting: The Pixel-Perfect Privacy Killer

Canvas fingerprinting renders invisible graphics elements in your browser and analyzes the resulting pixel data for unique variations. Canvas fingerprinting renders unique pixel patterns because identical HTML5 canvas instructions produce slightly different outputs across different systems. Font rendering, anti-aliasing algorithms, and graphics drivers create microscopic variations that serve as reliable identifiers.

Your browser draws the same text or shape, but the exact pixels differ based on your operating system’s font rendering engine, installed fonts, graphics hardware, and driver versions. Even browsers with identical settings on similar hardware produce distinguishable canvas signatures. These variations are invisible to users but detectable through pixel analysis.

The technique works by having your browser render text, shapes, or gradients onto an HTML5 canvas element, then reading back the pixel data using JavaScript’s toDataURL() method. Canvas signatures remain stable across 99.5% of browser restarts, making them extremely reliable for tracking. The fingerprint persists through cookie deletion, private browsing, and most privacy settings because it’s based on fundamental system characteristics.

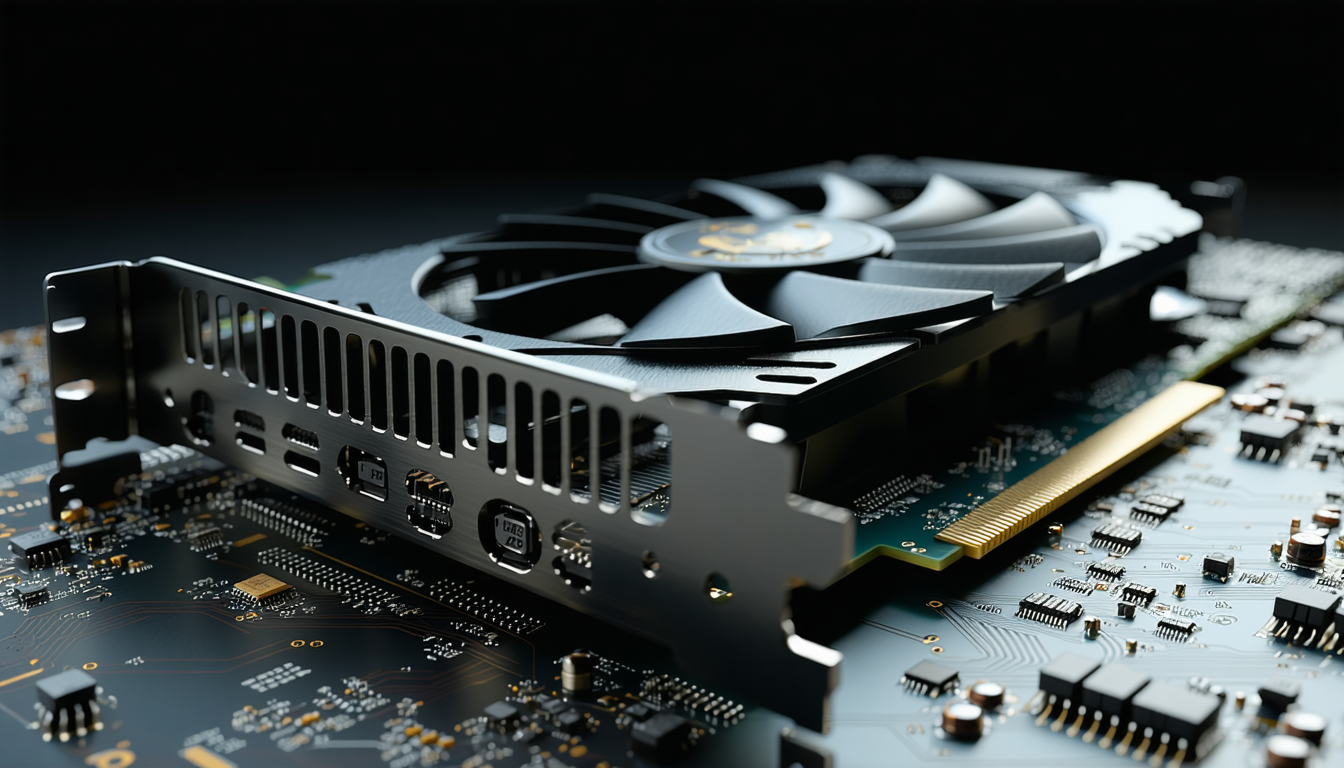

WebGL Hardware Signatures: When Your Graphics Card Betrays You

WebGL fingerprinting exposes hardware specifications by querying your graphics card’s capabilities, driver information, and rendering performance characteristics. WebGL fingerprinting exposes hardware specifications through the graphics API, revealing GPU models, driver versions, supported extensions, and rendering limits that create unique device signatures.

The UNMASKED_RENDERER_WEBGL parameter alone exposes exact GPU model information in 78% of browsers, despite browser vendors attempting to limit this data. Combined with the UNMASKED_VENDOR_WEBGL parameter, supported extensions list, maximum texture sizes, and shader capabilities, WebGL creates highly distinctive hardware profiles.

Even users with common GPUs become trackable through the combination of driver version, supported OpenGL extensions, and precise rendering capabilities. Graphics drivers get updated frequently, creating version combinations that narrow down possible hardware configurations. WebGL can detect whether you’re using integrated or discrete graphics, your monitor’s color gamut support, and various rendering optimizations specific to your hardware setup.

The hardware diversity creates 95+ distinct GPU and driver combinations across common consumer devices. This makes WebGL fingerprinting particularly effective because graphics configurations are difficult for users to modify and remain consistent across browser sessions and updates.

How Do Screen Properties Create Persistent User IDs?

Screen fingerprinting combines display characteristics with device sensors to build unique identifier profiles that persist across browsing sessions.

Property	Tracking Value	Uniqueness Factor
Resolution	1920×1080, 2560×1440, 3840×2160	4K displays: 3.2% of users
Color Depth	24-bit, 30-bit, HDR support	30-bit+ displays: 8% of users
Pixel Density	96 DPI, 144 DPI, 326 DPI	High-DPI varies by device
Multi-Monitor	Single, dual, triple setups	Multi-monitor: 23% of users
Orientation	Portrait, landscape, rotation	Mobile orientation changes
Timezone Offset	UTC-8, UTC-5, UTC+1	Combined with resolution: 87% unique

Screen fingerprinting combines display characteristics with timezone data to create tracking signatures. The combination of screen resolution, color depth, available screen space (accounting for taskbars), and timezone offset produces fingerprints unique enough to identify 87% of users reliably.

Modern displays vary significantly in capabilities. HDR support, wide color gamut compatibility, refresh rate detection, and multi-monitor configurations add layers of uniqueness. Mobile devices contribute additional entropy through orientation capabilities, touch screen detection, and device-specific screen properties that desktop browsers cannot replicate.

Audio Context Fingerprinting: The Sound of Your Browser

Audio context fingerprinting analyzes digital signal processing variations between different systems to create unique browser signatures. Audio fingerprinting analyzes digital signal processing by generating synthetic audio signals through JavaScript’s Web Audio API and measuring how different systems process identical audio code.

The technique creates oscillator nodes, applies filters and effects, then measures the precise floating-point values produced by your system’s audio processing pipeline. Different audio hardware, drivers, and digital signal processing implementations produce microscopic variations in the computed audio samples. These differences are inaudible but mathematically detectable.

Even systems without speakers or audio output generate these signatures because the fingerprinting occurs in the digital processing layer, not actual sound production. Your CPU’s floating-point unit characteristics, audio driver implementation, and system-level audio processing create consistent patterns unique to your configuration.

Audio context fingerprints show 99.9% stability over 30-day periods, making them extremely reliable for long-term tracking. The fingerprint remains consistent even when audio settings change because it measures fundamental digital signal processing characteristics rather than user-configurable audio preferences.

Battery Status and Sensor Data: Mobile Fingerprinting Goldmine

Mobile devices expose extensive sensor data through JavaScript APIs that create rich fingerprinting profiles beyond traditional desktop tracking methods. Mobile fingerprinting accesses device sensors including battery status, accelerometer data, gyroscope readings, magnetometer values, and touch capabilities that desktop browsers cannot replicate.

The Battery Status API provides particularly precise tracking data. Battery level readings include decimal precision, charging status, estimated charging time, and discharge time remaining. Battery API provides timestamps accurate to 1 second, creating 86,400 possible values per day when combined with battery level percentages.

Accelerometer and gyroscope sensors reveal device orientation, movement patterns, and even typing behavior characteristics. Touch event properties expose screen size, pressure sensitivity, multi-touch capabilities, and gesture recognition features specific to individual devices. These mobile-specific identifiers persist across app installations and browser updates.

Device orientation APIs detect portrait/landscape preferences, screen rotation capabilities, and multi-orientation support. Combined with mobile-specific screen properties like pixel density and touch interface characteristics, mobile fingerprinting creates highly unique profiles that are difficult to replicate or spoof without specialized privacy tools.

Can You Actually Block JavaScript Fingerprinting?

Blocking JavaScript fingerprinting requires understanding which privacy tools actually work versus those that provide false security while missing critical fingerprinting vectors.

Tool	Effectiveness	Trade-offs	Fingerprinting Blocked
NoScript	95%+ blocking	Breaks most websites	All JS-based methods
Tor Browser	90%+ protection	Slow, limited functionality	Canvas, WebGL, fonts
Firefox strict privacy	60% reduction	Some site breakage	Basic fingerprinting
uBlock Origin	73% blocking rate	15% website breakage	Known tracking scripts
Browser extensions	40-80% variable	Compatibility issues	Depends on implementation

Privacy tools block fingerprinting methods with varying success rates and significant functionality trade-offs. NoScript disables JavaScript entirely, eliminating fingerprinting but breaking modern web functionality. Tor Browser includes comprehensive fingerprinting protection by standardizing browser properties and blocking dangerous APIs.

Firefox’s strict privacy settings reduce fingerprinting through font enumeration blocking and canvas data randomization, but many techniques still work. uBlock Origin blocks 73% of fingerprinting attempts by preventing known tracking scripts from loading, but sophisticated fingerprinting embedded in legitimate JavaScript still executes.

The fundamental problem is that blocking fingerprinting requires breaking web standards. Canvas, WebGL, and Audio APIs serve legitimate purposes beyond tracking. Complete protection means accepting that many websites won’t work correctly, making privacy a conscious trade-off against web functionality.
